Unified evaluation
Models, agents, and tasks are treated as interchangeable components under one evaluation interface.
Overview
Beyond leaderboard success rates
VLN-MME is designed to diagnose how MLLMs behave as language-guided visual navigation agents, not just whether they reach the goal.
Simulator-free
Pre-rendered observations and graph metadata remove the need to install Matterport3D or Habitat simulators.
Agent diagnosis
The benchmark compares memory formats, CoT prompting, reflection, and MLLM backbones under consistent tasks.
Failure analysis
Step-level trajectory inspection reveals looping, weak historical grounding, and perception-action gaps.

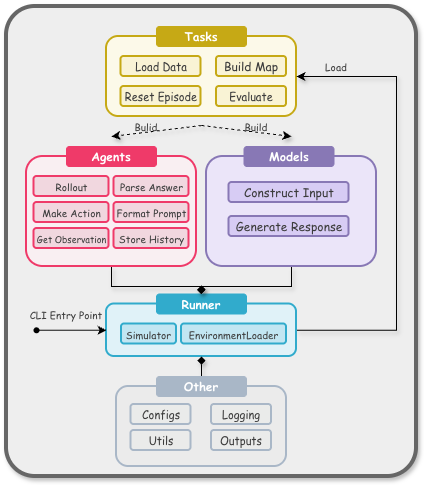

Framework
Model, Agent, Task, and Runner
The implementation separates model APIs, agent prompting and memory, navigation tasks, environment loading, and evaluation logging.
The Model interface handles open-weight and proprietary MLLMs. The Agent converts state into prompts, stores history, parses model output, and selects actions. The Task encapsulates dataset splits, maps, and evaluation metrics.
A central Runner coordinates loading, rollout, logging, and metric computation, allowing component-level comparisons without rewriting the evaluation loop.
Memory variants include text summary agents and topological text-map agents.
Reasoning variants include baseline prompting, CoT, reflection, and CoT + reflection.
Adding a new model, agent, or task follows the same registry pattern used by the current codebase.

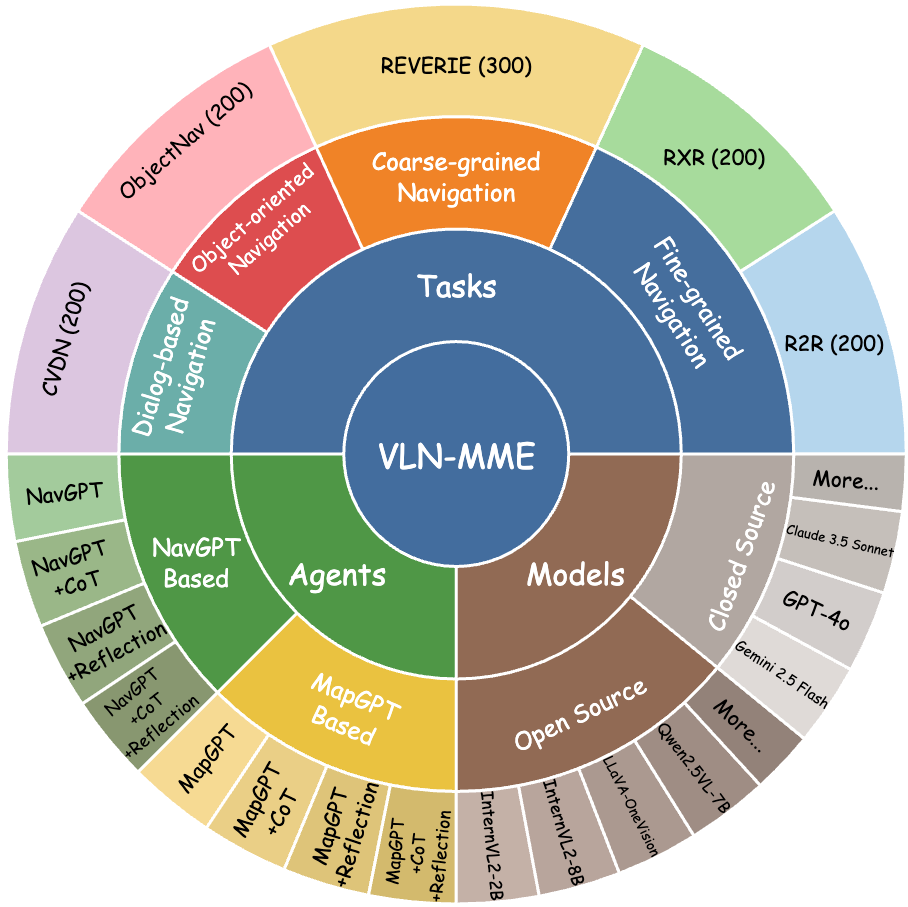

Composition
One benchmark, multiple axes
VLN-MME is organized around the interaction between navigation tasks, agent architectures, and MLLM backbones. This makes it possible to diagnose whether a result comes from model capability, memory design, reasoning prompts, or task granularity.
Tasks: fine-grained, coarse-grained, object-oriented, and extensible navigation settings.
Agents: NavGPT-style memory, MapGPT-style memory, CoT, reflection, and combined variants.
Models: open-weight and proprietary MLLMs can be swapped under the same protocol.
Benchmark
Efficient coverage of navigation granularity
The paper evaluates representative navigation tasks across fine-grained instructions, coarse-grained referring expressions, and object-oriented navigation.

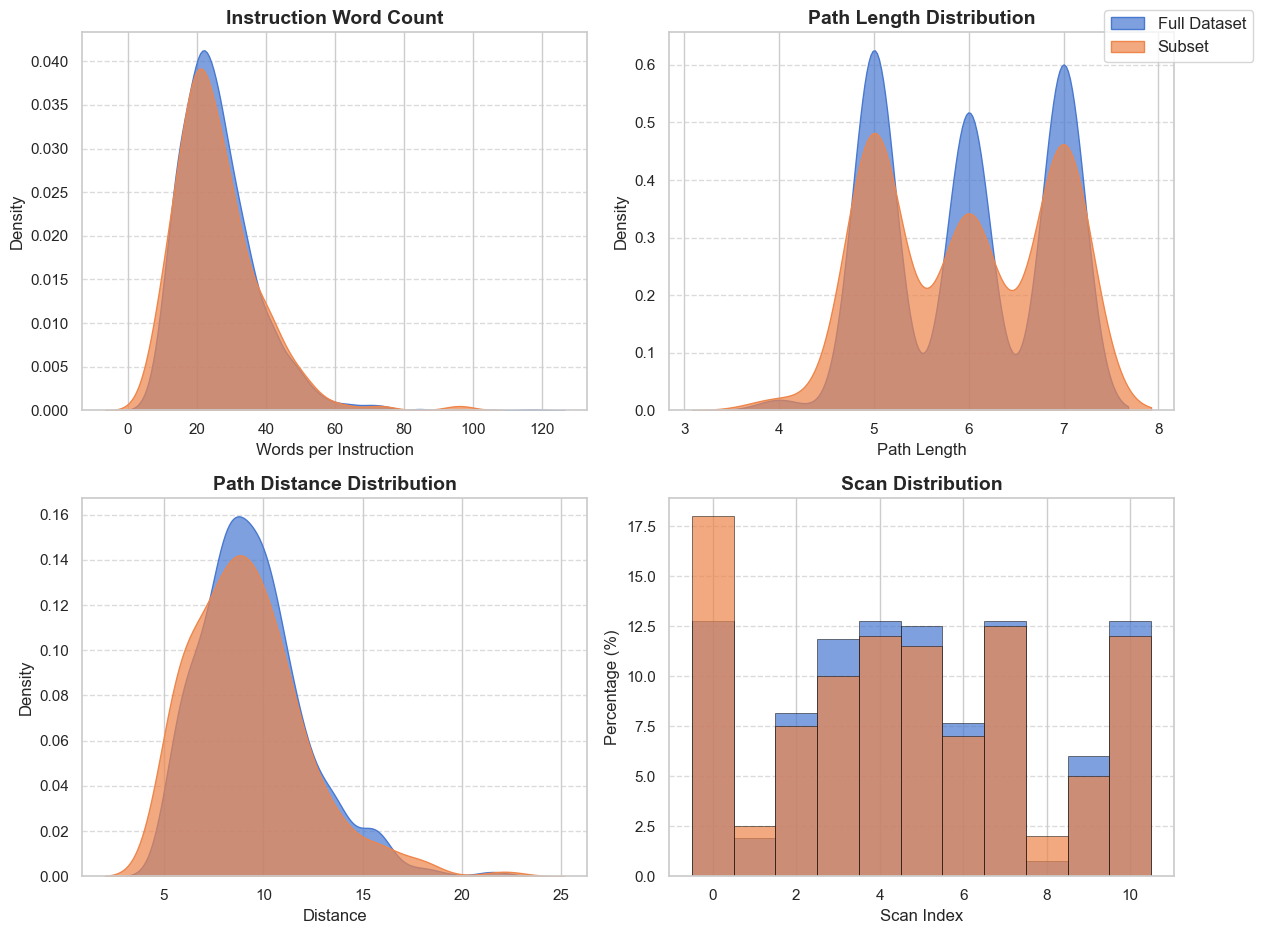

VLN-MME constructs compact but representative evaluation subsets so large MLLM agents can be compared without exhaustive simulator runs.
Fine-grained: R2R instruction following with step-by-step language guidance.
Coarse-grained: REVERIE navigation to remote, out-of-sight targets.
Object-oriented: ObjectNav-MP3D navigation from a target category.
The released code also supports RXR-EN and CVDN for broader extensions.
Observation
Simulator-free visual grounding
VLN-MME replaces online simulator rendering with pre-rendered, agent-centric observations and semantic metadata.
Agent-centric panoramic input avoids dense image sweeps and distorted stitched panoramas.
Runtime memory compared with about 10GB for simulator-based evaluation.
Observation access compared with about 0.14s when rendering online.
Approximate per-episode time saved by avoiding simulator rendering overhead.
Results

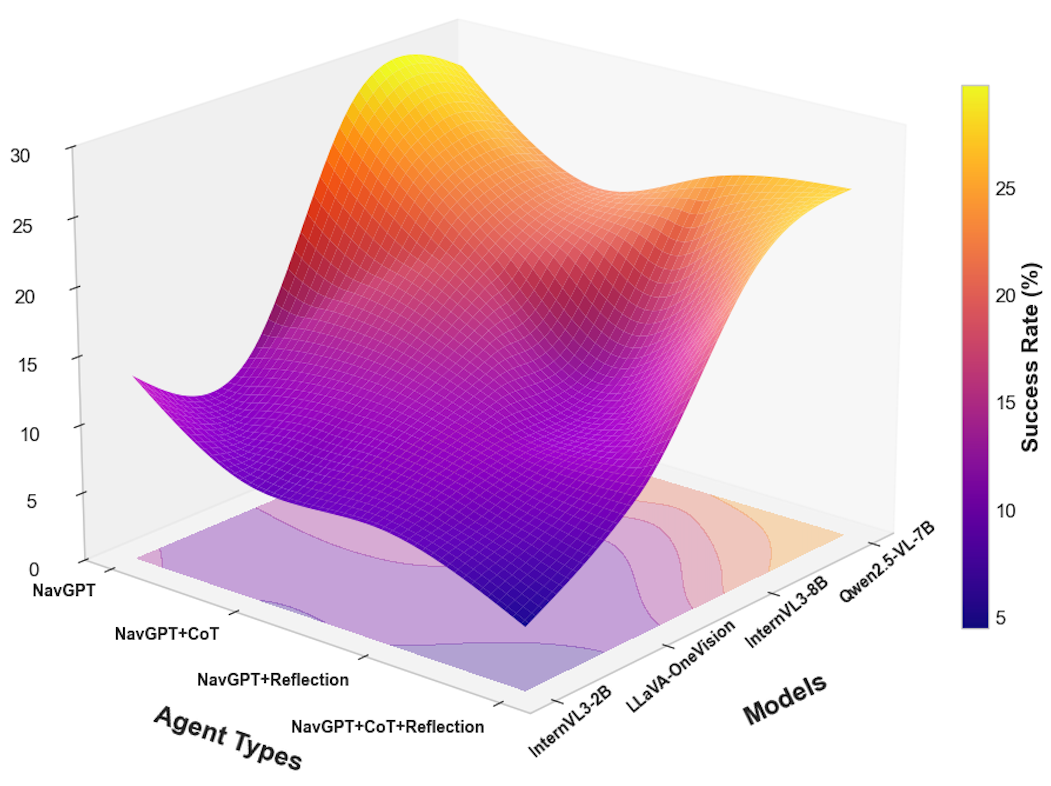

Reasoning prompts do not guarantee better navigation
The results expose a gap between formatted reasoning and usable embodied context awareness.
Proprietary MLLMs such as GPT-5 and Gemini-2.5 Pro set the strongest zero-shot upper bound, while Qwen2.5-VL-7B is a robust open-weight baseline.
Counterintuitively, adding CoT or reflection often hurts navigation. For Qwen2.5-VL-7B on fine-grained navigation, CoT reduces success rate from 27.5% to 21.0%, indicating that explicit reasoning traces can fail to use historical context.
CoT outputs can look structured while still relying on local visual cues.
Text-map memory does not automatically solve spatial grounding.
Object-oriented navigation is generally more tractable than coarse-grained navigation.
Main Table
Compact web view of main table
The paper table reports eight metrics for each navigation category. On the website, the same comparison is condensed to the most readable success-efficiency pair: SR and SPL for fine-grained, coarse-grained, and object-oriented navigation.
The pattern is consistent with the paper discussion: proprietary models define the upper bound, Qwen2.5-VL-7B is the strongest open-weight baseline in several settings, and explicit CoT/reflection often reduces navigation success rather than improving it.
Show compact main table: SR / SPL across tasks
| Agent / MLLM | Fine SR | Fine SPL | Coarse SR | Coarse SPL | Object SR | Object SPL |
|---|---|---|---|---|---|---|
| Text Summarization Memory Agents | ||||||
| NavGPT | ||||||
| GPT-5 | 38.50 | 29.23 | 30.00 | 20.76 | 48.00 | 23.84 |
| Gemini-2.5 Pro | 41.00 | 32.67 | 33.50 | 24.38 | 51.50 | 27.19 |
| InternVL3-2B | 13.50 | 5.46 | 7.33 | 2.50 | 21.50 | 3.57 |
| InternVL3-8B | 28.00 | 12.61 | 20.00 | 7.18 | 39.00 | 7.69 |
| LLaVA-OV-7B | 11.50 | 4.94 | 14.67 | 5.19 | 27.50 | 4.51 |
| Qwen2.5-VL-7B | 27.50 | 17.11 | 18.67 | 9.00 | 37.50 | 13.18 |
| NavGPT w/ CoT | ||||||
| GPT-5 | 36.00 | 27.31 | 28.50 | 20.42 | 46.50 | 23.67 |
| Gemini-2.5 Pro | 32.50 | 23.88 | 24.00 | 16.93 | 42.00 | 19.27 |
| InternVL3-2B | 8.00 | 4.47 | 5.33 | 3.24 | 25.00 | 6.66 |
| InternVL3-8B | 19.00 | 10.95 | 15.33 | 9.31 | 34.50 | 12.67 |
| LLaVA-OV-7B | 12.50 | 5.41 | 14.00 | 5.90 | 33.50 | 7.31 |
| Qwen2.5-VL-7B | 21.00 | 11.41 | 15.67 | 8.10 | 33.00 | 13.25 |
| NavGPT w/ Reflection | ||||||
| GPT-5 | 33.00 | 24.18 | 25.00 | 17.34 | 43.00 | 20.62 |
| Gemini-2.5 Pro | 37.50 | 28.73 | 29.00 | 21.68 | 47.50 | 25.14 |
| InternVL3-2B | 8.00 | 5.20 | 8.50 | 4.80 | 28.00 | 7.83 |
| InternVL3-8B | 12.00 | 9.53 | 11.00 | 5.97 | 32.50 | 9.12 |
| LLaVA-OV-7B | 10.50 | 9.44 | 9.33 | 5.82 | 34.00 | 7.90 |
| Qwen2.5-VL-7B | 24.00 | 14.95 | 12.00 | 7.97 | 35.50 | 14.67 |
| NavGPT w/ CoT & Reflection | ||||||
| GPT-5 | 38.50 | 29.81 | 30.00 | 22.17 | 48.50 | 25.92 |
| Gemini-2.5 Pro | 34.00 | 25.74 | 25.50 | 18.36 | 43.50 | 21.28 |
| InternVL3-2B | 4.50 | 1.70 | 9.33 | 4.63 | 24.50 | 7.26 |
| InternVL3-8B | 22.00 | 15.33 | 17.33 | 10.07 | 32.50 | 8.14 |
| LLaVA-OV-7B | 10.00 | 5.83 | 14.00 | 6.78 | 28.50 | 7.25 |
| Qwen2.5-VL-7B | 25.50 | 17.68 | 11.67 | 7.89 | 36.00 | 13.67 |
| Text Map Memory Agents | ||||||
| MapGPT | ||||||
| GPT-5 | 34.00 | 25.83 | 26.00 | 18.29 | 44.00 | 20.91 |
| Gemini-2.5 Pro | 39.50 | 30.72 | 31.50 | 23.16 | 49.50 | 26.24 |
| InternVL3-2B | 11.00 | 3.71 | 12.00 | 4.41 | 27.50 | 4.41 |
| InternVL3-8B | 18.00 | 12.46 | 13.67 | 7.87 | 31.50 | 11.61 |
| LLaVA-OV-7B | 8.50 | 5.59 | 14.67 | 6.48 | 22.50 | 4.28 |
| Qwen2.5-VL-7B | 26.00 | 17.31 | 21.67 | 8.96 | 36.50 | 11.05 |
| MapGPT w/ CoT | ||||||
| GPT-5 | 32.50 | 27.14 | 24.50 | 19.68 | 44.50 | 23.21 |
| Gemini-2.5 Pro | 31.00 | 23.37 | 23.00 | 15.84 | 39.50 | 18.76 |
| InternVL3-2B | 6.50 | 4.12 | 4.00 | 1.58 | 20.00 | 4.76 |
| InternVL3-8B | 12.00 | 9.66 | 13.33 | 8.77 | 34.00 | 12.33 |
| LLaVA-OV-7B | 8.50 | 2.83 | 8.67 | 3.38 | 16.00 | 4.14 |
| Qwen2.5-VL-7B | 17.00 | 10.47 | 16.33 | 10.61 | 32.00 | 9.95 |
| MapGPT w/ Reflection | ||||||
| GPT-5 | 36.50 | 28.19 | 25.50 | 20.73 | 45.50 | 23.65 |
| Gemini-2.5 Pro | 32.00 | 24.31 | 24.00 | 16.88 | 41.00 | 19.94 |
| InternVL3-2B | 4.00 | 3.26 | 3.67 | 3.31 | 25.00 | 4.50 |
| InternVL3-8B | 16.50 | 10.89 | 12.67 | 6.64 | 30.00 | 10.36 |
| LLaVA-OV-7B | 10.00 | 5.50 | 11.00 | 6.00 | 15.50 | 2.02 |
| Qwen2.5-VL-7B | 26.50 | 10.12 | 15.67 | 6.00 | 33.50 | 7.41 |
| MapGPT w/ CoT & Reflection | ||||||
| GPT-5 | 34.50 | 26.13 | 24.50 | 18.67 | 42.50 | 21.79 |
| Gemini-2.5 Pro | 30.00 | 22.28 | 22.00 | 15.41 | 38.00 | 17.86 |
| InternVL3-2B | 9.00 | 4.88 | 4.67 | 1.61 | 18.00 | 4.74 |
| InternVL3-8B | 18.00 | 10.84 | 13.00 | 6.06 | 33.50 | 8.01 |
| LLaVA-OV-7B | 13.00 | 5.81 | 9.00 | 4.53 | 24.50 | 5.45 |
| Qwen2.5-VL-7B | 14.00 | 7.12 | 10.67 | 6.68 | 25.50 | 6.78 |
Compact rendering of `Tab/main_table.tex`: SR and SPL are retained for readability; the paper PDF contains TL, NE, nDTW, SDTW, CLS, and OSR as well.
Diagnostics
Looping reveals the perception-action gap
VLN-MME turns aggregate failure into interpretable behavioral patterns at the trajectory level.

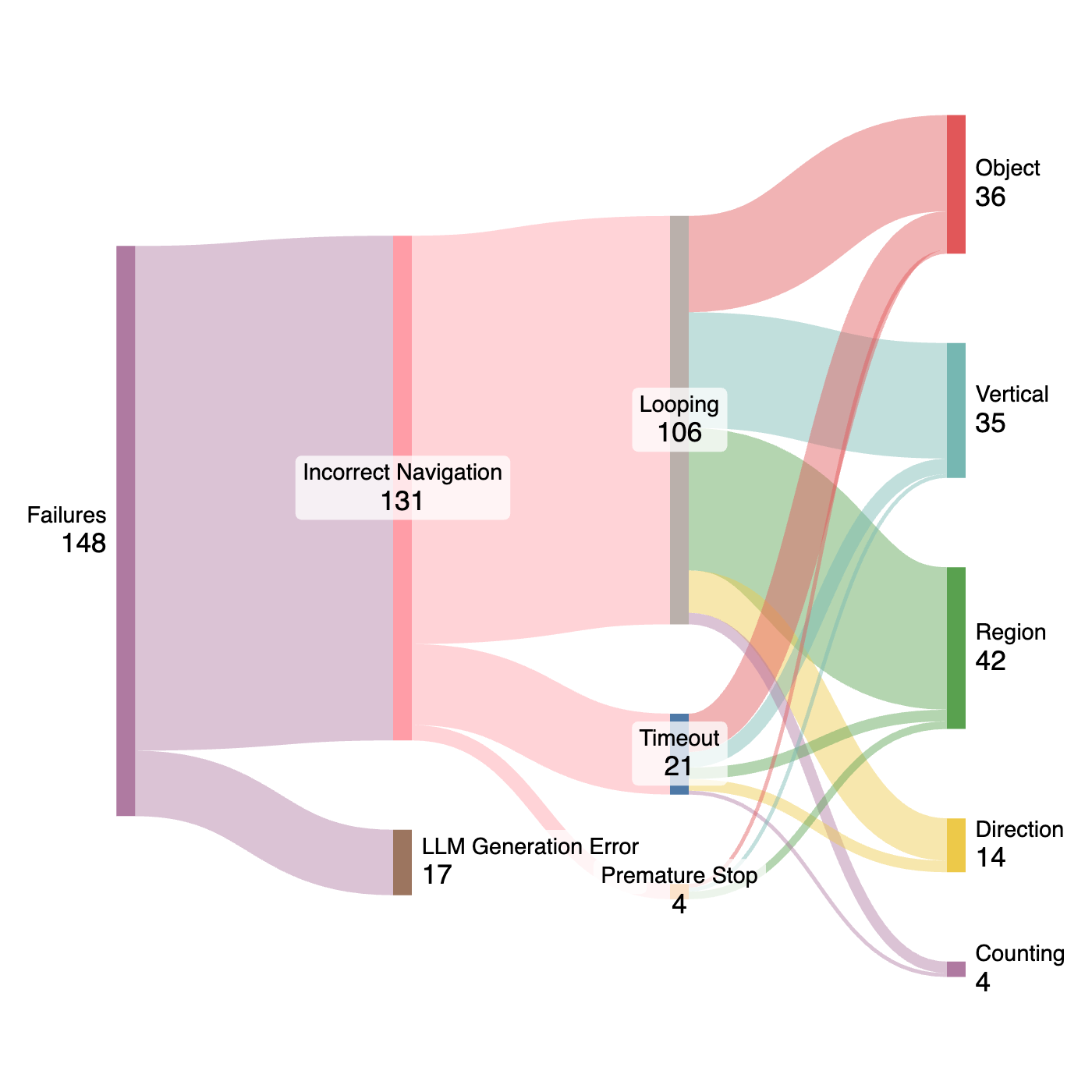

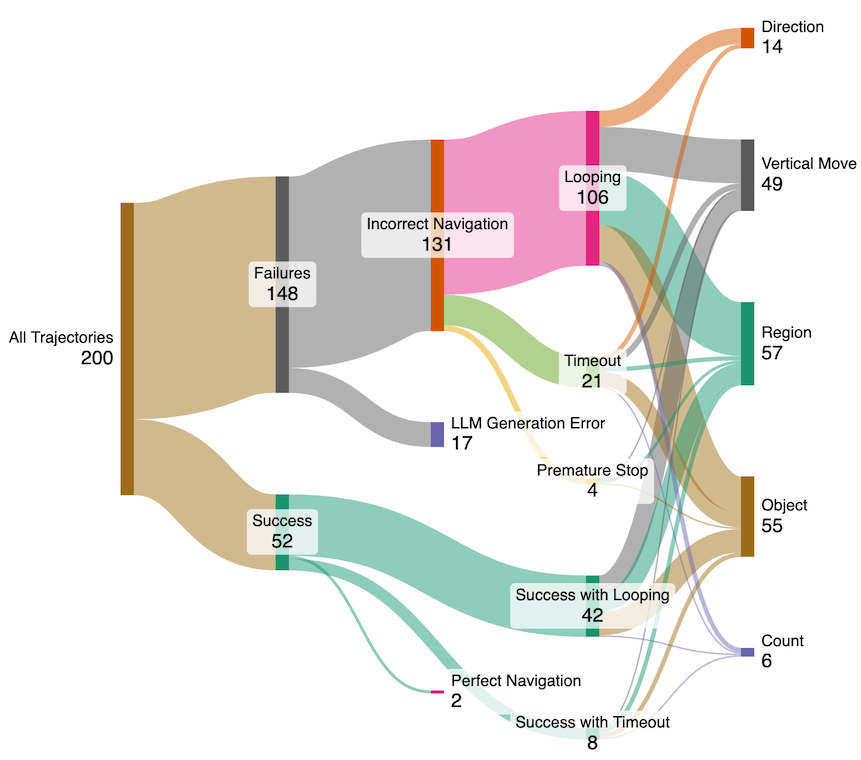

Among 200 analyzed trajectories, 148 fail and 52 succeed. Of the failures, 131 are incorrect navigation rather than generation-format errors, and 106 involve looping.

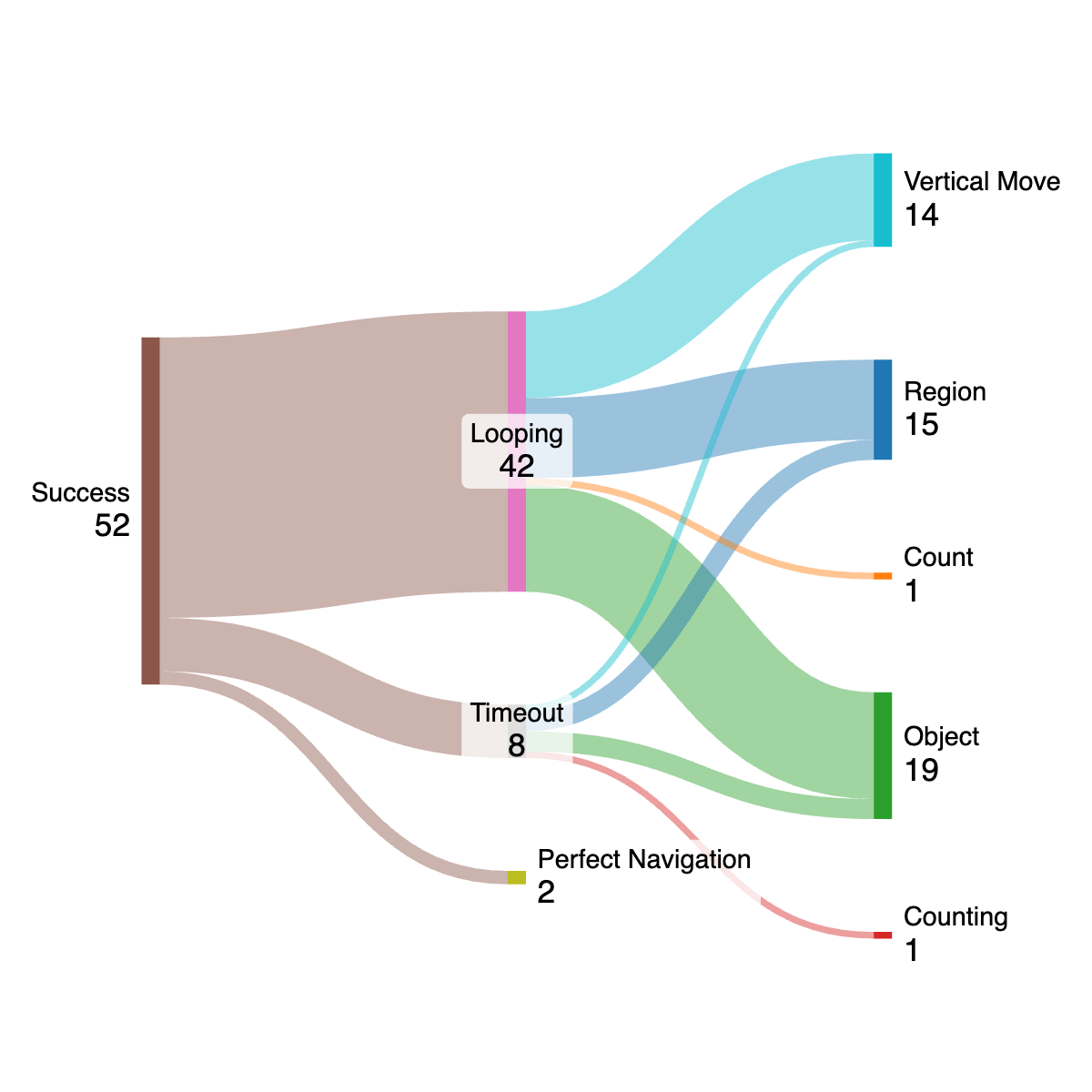

Even successful episodes are often inefficient: 42 of 52 successes include looping behavior before reaching or stopping near the target. This points to weak state tracking, poor historical grounding, and incomplete translation from perception to action.
Common failure causes include region recognition, vertical movement, and object grounding.
The agent can recognize visual evidence but still choose actions that repeat prior mistakes.
Looping is the dominant incorrect-navigation pattern, reflecting unstable spatial memory and weak long-horizon correction.
Diagnostic Study
What fixes the hard negatives?
The paper revisits 25 fine-grained hard-negative trajectories where all open-weight models failed with the standard text-summary agent.
Oracle-guided navigation
A stronger Qwen3VL oracle assistant provides high-level reasoning guidance when the navigator loops, enters a wrong region, or moves in a critically wrong direction. The jump from 0% SR to 52% SR suggests the base navigator has some visual grounding, but lacks strategic planning and error-correction logic.
| Method | SR | OSR | SPL |
|---|---|---|---|
| Baseline Qwen2.5VL-7B | 0.00 | 0.00 | 0.00 |
| + Oracle Assistant | 52.00 | 68.00 | 41.28 |
Failure-aware in-context learning
Instead of direct oracle support, the model receives examples of common failure cases in the prompt. This improves performance modestly, but remains far below the oracle-guided setting, indicating that awareness of failure modes helps less than active reasoning assistance.
| Method | SR | OSR | SPL |
|---|---|---|---|
| Zero-shot baseline | 0.00 | 0.00 | 0.00 |
| 1-shot failure example | 12.00 | 24.00 | 9.42 |
| 2-shot failure examples | 16.00 | 28.00 | 11.25 |
| 3-shot failure examples | 16.00 | 32.00 | 14.29 |
Case Studies
Step-level behavior exposes where agents fail
The paper case studies show successful but inefficient paths, vertical-movement confusion, invalid outputs, and region-understanding failures.

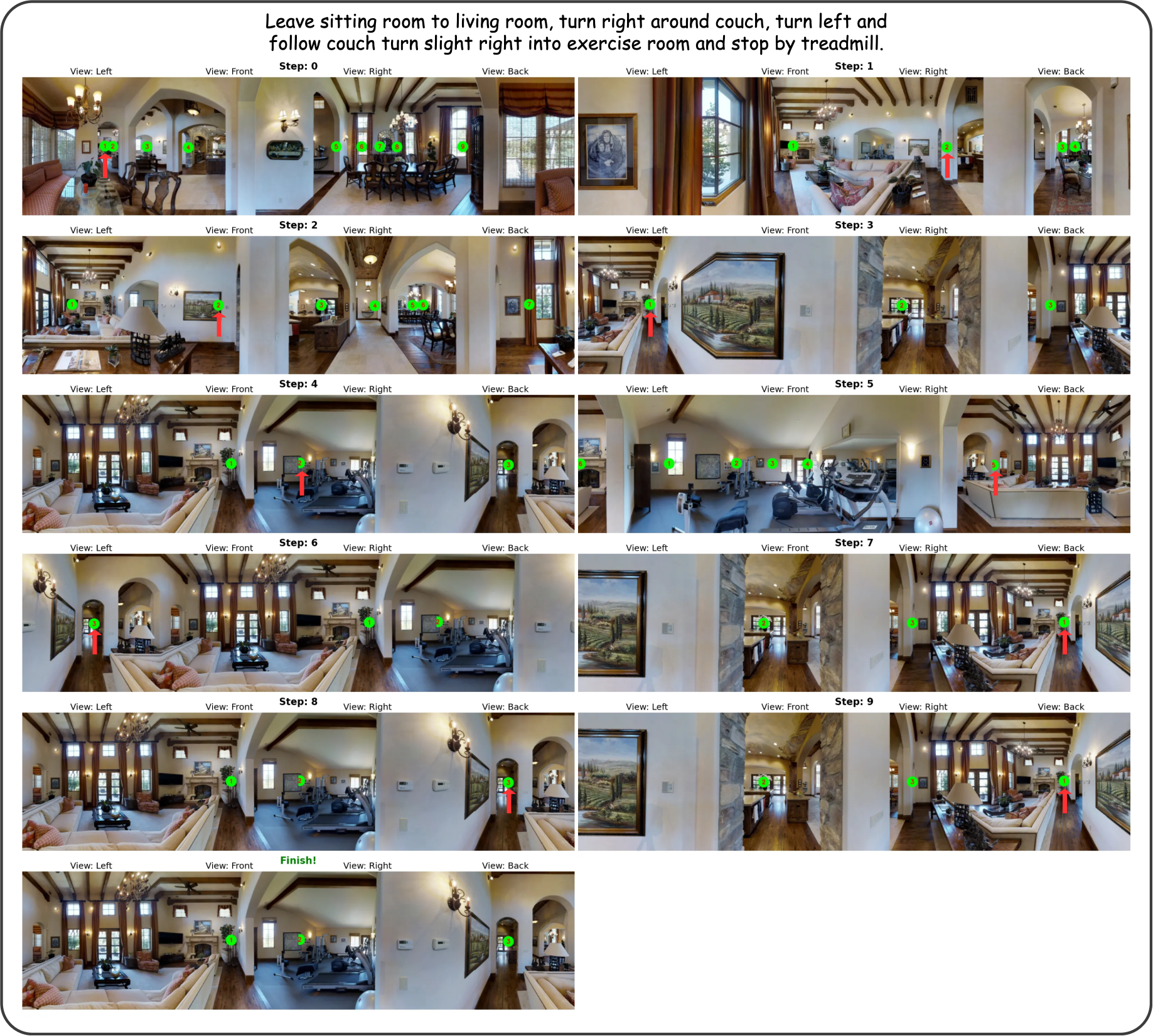

Successful but inefficient
The agent sees the treadmill, loops through nearby rooms, and only later stops by the target.
Recovery with vertical confusion
The agent eventually succeeds, but staircase positioning causes repeated local corrections.

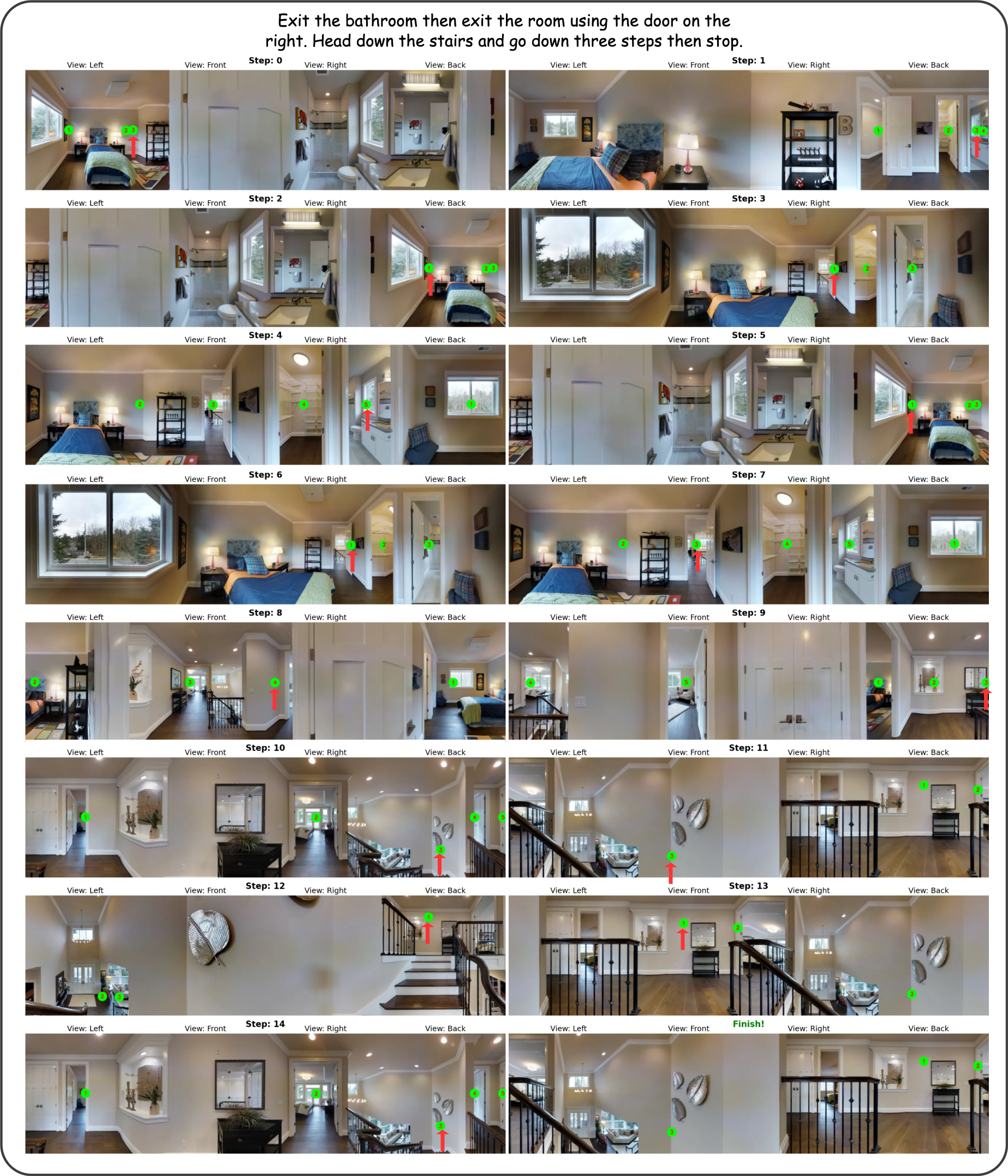

Oracle success, final failure
The agent reaches the correct general area but fails to stop and loops on the staircase.

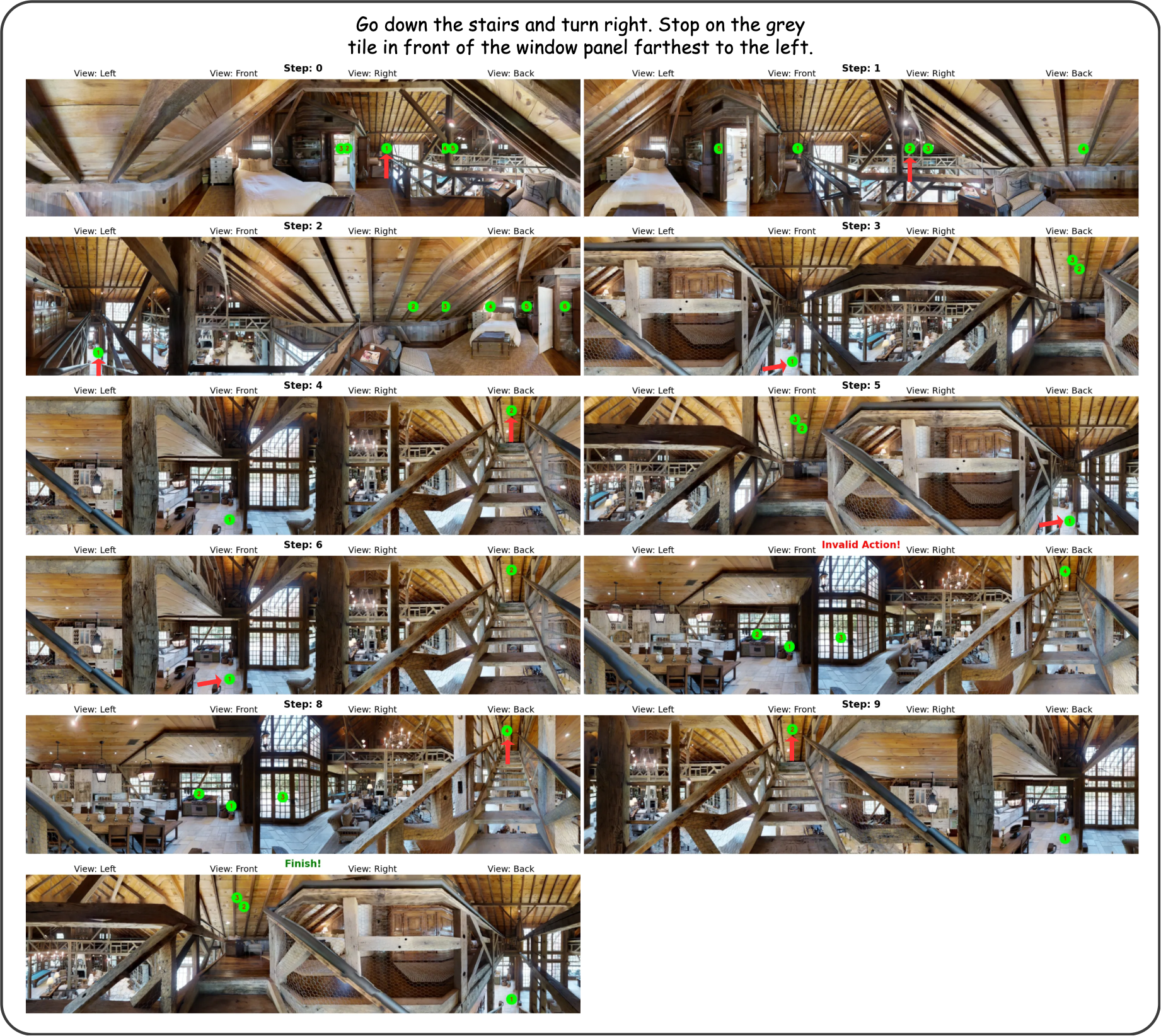

Instruction and generation failure
A directional grounding error is compounded by malformed output that yields an invalid action.

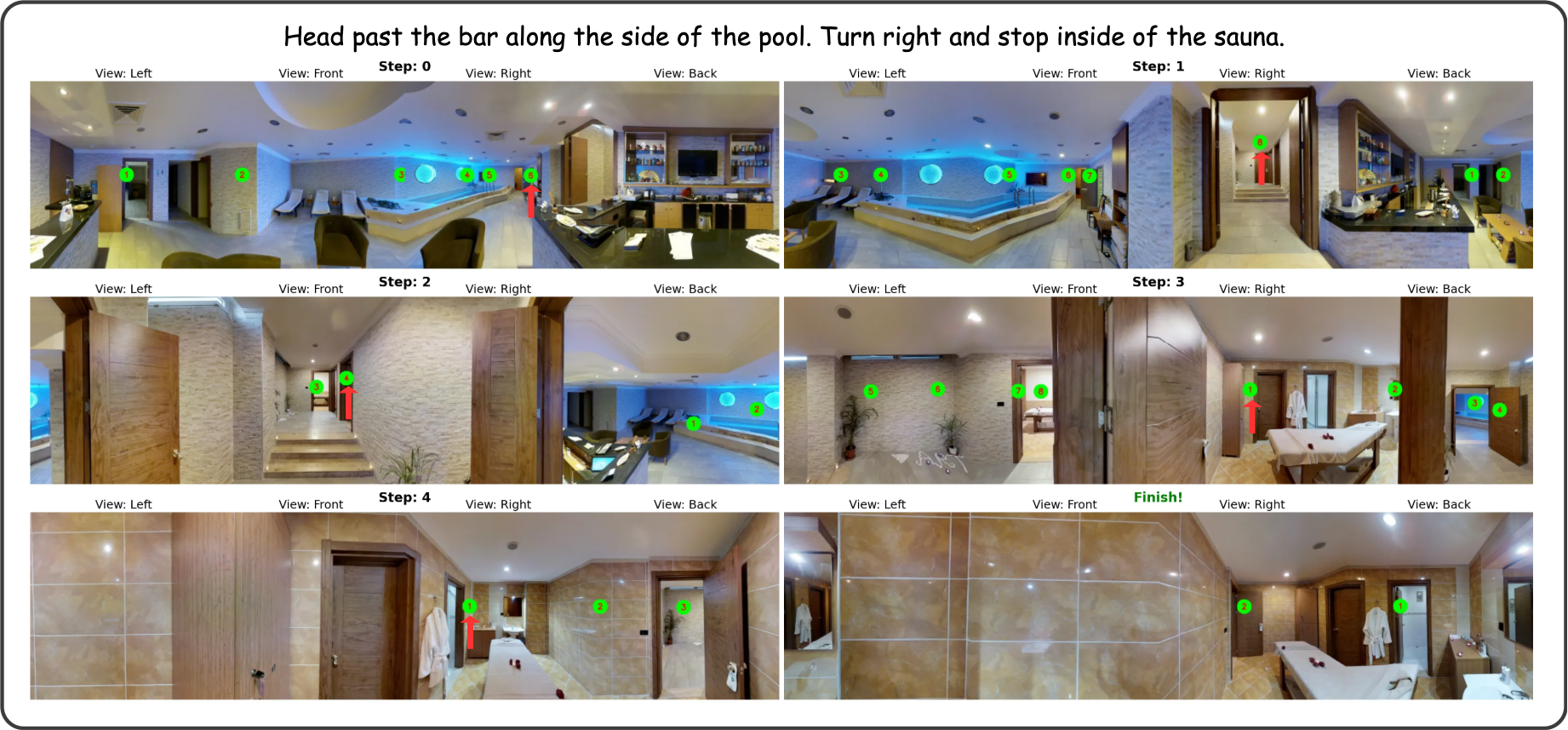

Region-understanding failure
The agent cannot correctly interpret and enter the specified target region, the sauna.
Quick Start
Run evaluation without installing a simulator
The framework downloads processed VLN annotations, marked observations, connectivity graphs, captions, and environment metadata.
conda create --name VLNMME python=3.10
conda activate VLNMME
pip install -r requirements.txt
cd src
python main.py --config_dir configs/experiment.yamlCitation
BibTeX
If VLN-MME is useful for your research, please cite the project.
@inproceedings{zhao-etal-2026-vln,
title = {{VLN}-{MME}: Diagnosing {MLLM}s as Language-guided Visual Navigation Agents},
author = {Zhao, Xunyi and Zhou, Gengze and Wu, Qi},
booktitle = {Proceedings of the 64th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers)},
year = {2026},
address = {San Diego, California, United States},
publisher = {Association for Computational Linguistics},
url = {https://aclanthology.org/2026.acl-long.1300/},
doi = {10.18653/v1/2026.acl-long.1300},
pages = {28207--28231}
}
